Cworth Energy 6KVA/6000W/48V Hybrid Inverter (Max. PV Input Power: 6000W)

Overview

The Cworth Energy 6KVA/6000W/48V Hybrid Inverter combines solar energy management and power conversion in a compact wall-mounted design. Built for users seeking efficient energy utilization, the inverter supports solar photovoltaic input while providing AC output for connected electrical loads.

Visible product information indicates support for high-frequency inverter operation, lithium battery activation functionality, MPPT solar charging technology, and parallel operation capability, making it suitable for a wide range of energy applications.

Key Features

• 6KVA / 6000W rated power
• Maximum PV input power: 6000W
• 48V DC input
• 230VAC output
• 50/60Hz AC output frequency
• MPPT solar charging technology
• Maximum PV charging current: 120A
• PV voltage (VOC): 500V
• MPPT tracking range: 120–500V
• Lithium battery activation function
• Parallel operation support
• High-frequency inverter design
• Wall-mounted installation format
• Cworth Energy branded hybrid inverter

Benefits

• Helps integrate solar energy into daily power usage
• Supports efficient solar energy harvesting through MPPT technology
• Suitable for both solar and battery-based energy systems
• Designed for users seeking higher power capacity for demanding loads
• Supports scalable energy deployment through parallel operation capability
• Compatible with 48V battery system architecture
• Compact wall-mounted design helps optimize available space
• Provides a centralized energy management solution for various power applications

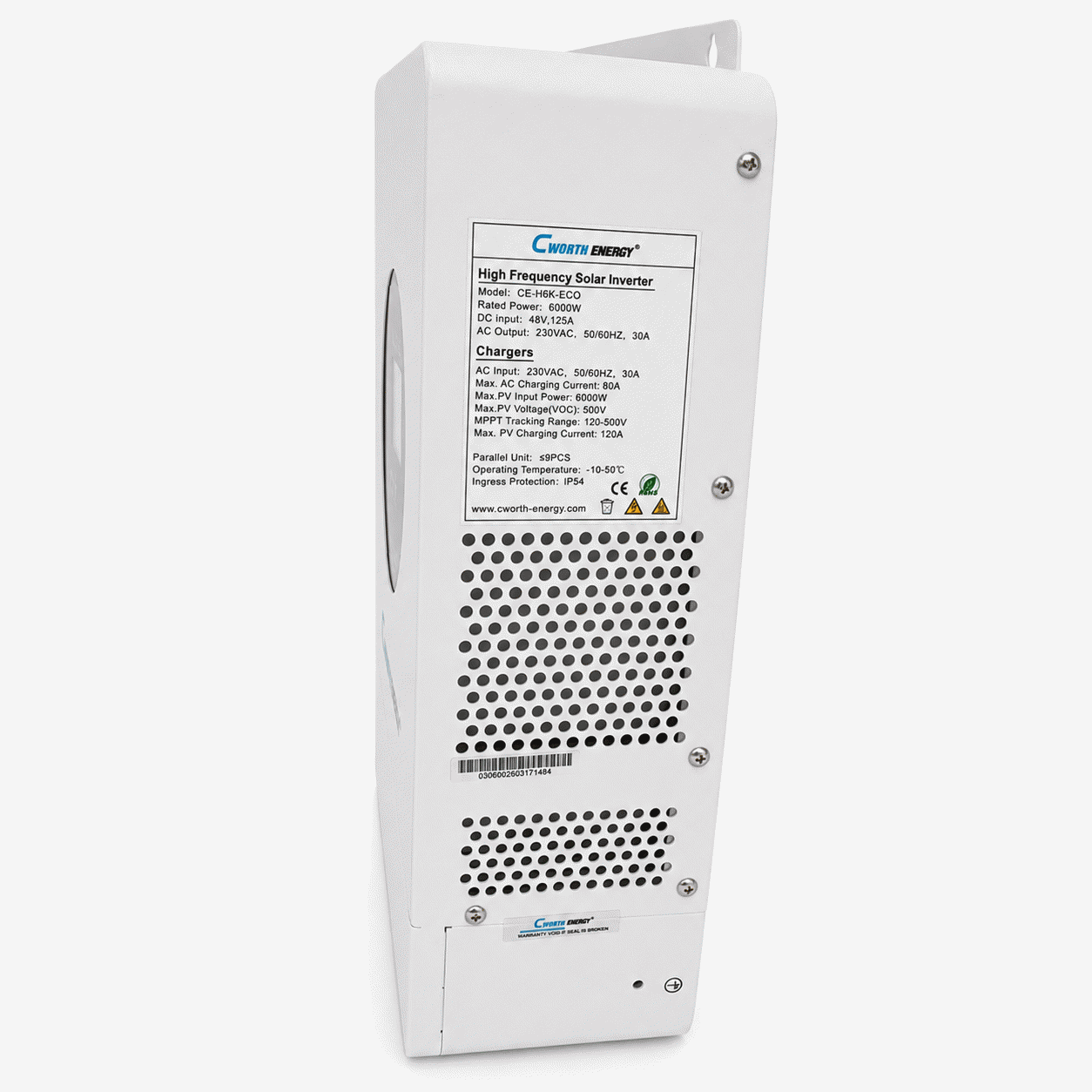

Technical Specifications

General

• Brand: Cworth Energy
• Product Type: Hybrid Inverter
• Model: CE-H6K-ECO

Power

• Rated Power: 6000W
• Inverter Capacity: 6KVA
• Maximum PV Input Power: 6000W

DC Input

• DC Input Voltage: 48V
• DC Input Current: 125A

AC Output

• AC Output Voltage: 230VAC
• Frequency: 50/60Hz
• Output Current: 30A

Solar Charging

• Maximum PV Voltage (VOC): 500V
• MPPT Tracking Range: 120–500V
• Maximum PV Charging Current: 120A

AC Charging

• AC Input Voltage: 230VAC
• Frequency: 50/60Hz
• Maximum AC Charging Current: 80A

Additional Information

• Lithium Battery Activation Function: Yes
• Parallel Unit Support: Up to 9 PCS
• Operating Temperature: -10°C to 50°C
• Ingress Protection Rating: IP54
