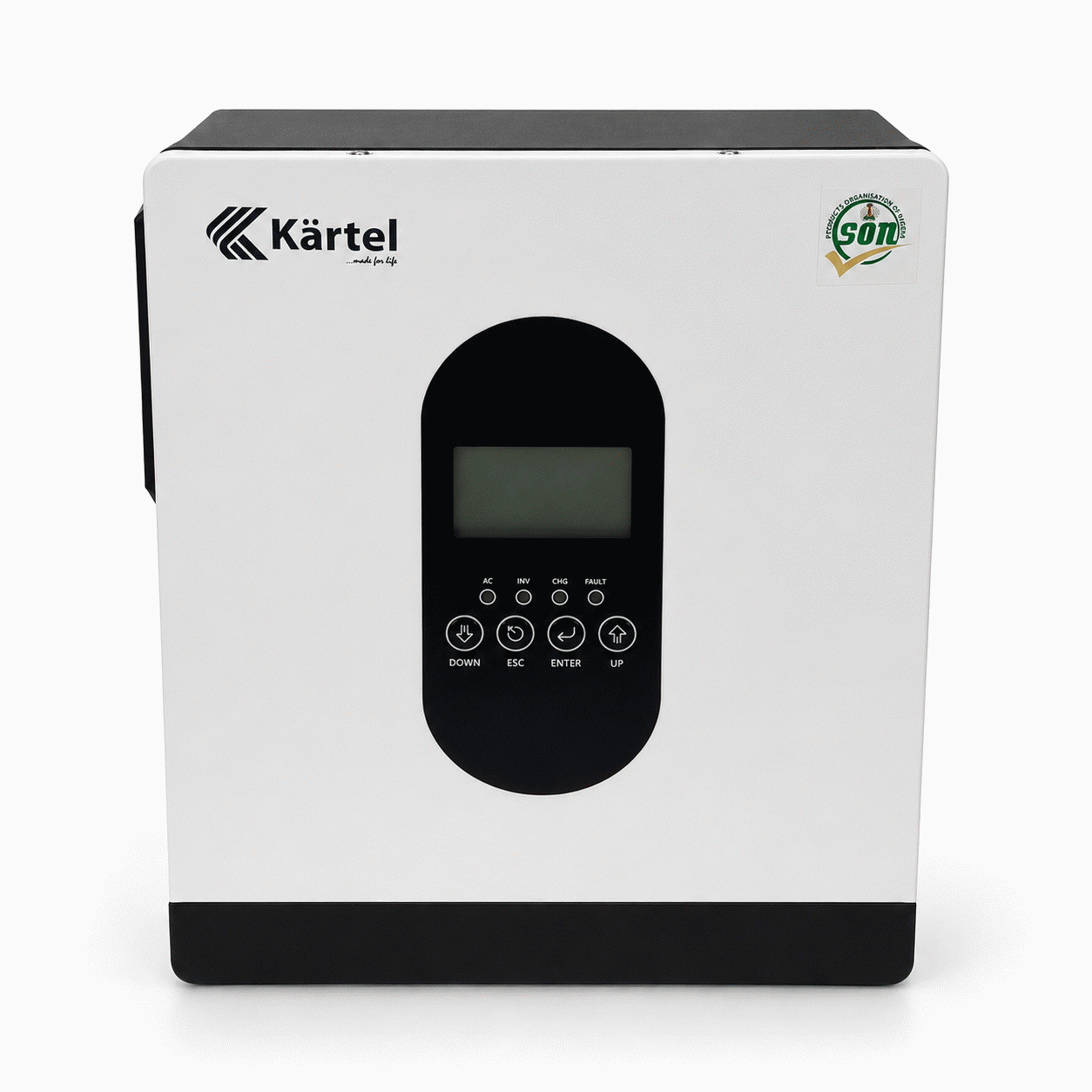

Kartel 1.5KVA/1.3KWh/12V Hybrid Inverter (Max. PV MPPT Input Power: 2000W)

Overview

Hybrid Solar Power Solution

The Kartel 1.5KVA/1.3KWh/12V Hybrid Inverter is engineered to manage power conversion and solar energy input within a single unit. Built around a 12V battery system and equipped with MPPT solar charging technology, it supports efficient solar energy utilization while providing AC output for connected loads.

Model Identification

This inverter carries model number NFP15212-1.5KVA-1.3KW and features a rated power output of 1300W. The unit incorporates a single MPPT tracker and supports a maximum PV input power of 2000W.

Features

MPPT Solar Charging Technology

The inverter includes an MPPT charging system with a tracking range of 30VDC–240VDC and a rated PV input voltage of 180VDC.

12V Battery System

Designed for use with 12VDC battery input systems and supporting charging currents as specified on the product label.

AC Input and Output

Supports AC input and AC output operation at 230VAC, compatible with both 50Hz and 60Hz frequencies.

Technical Specifications

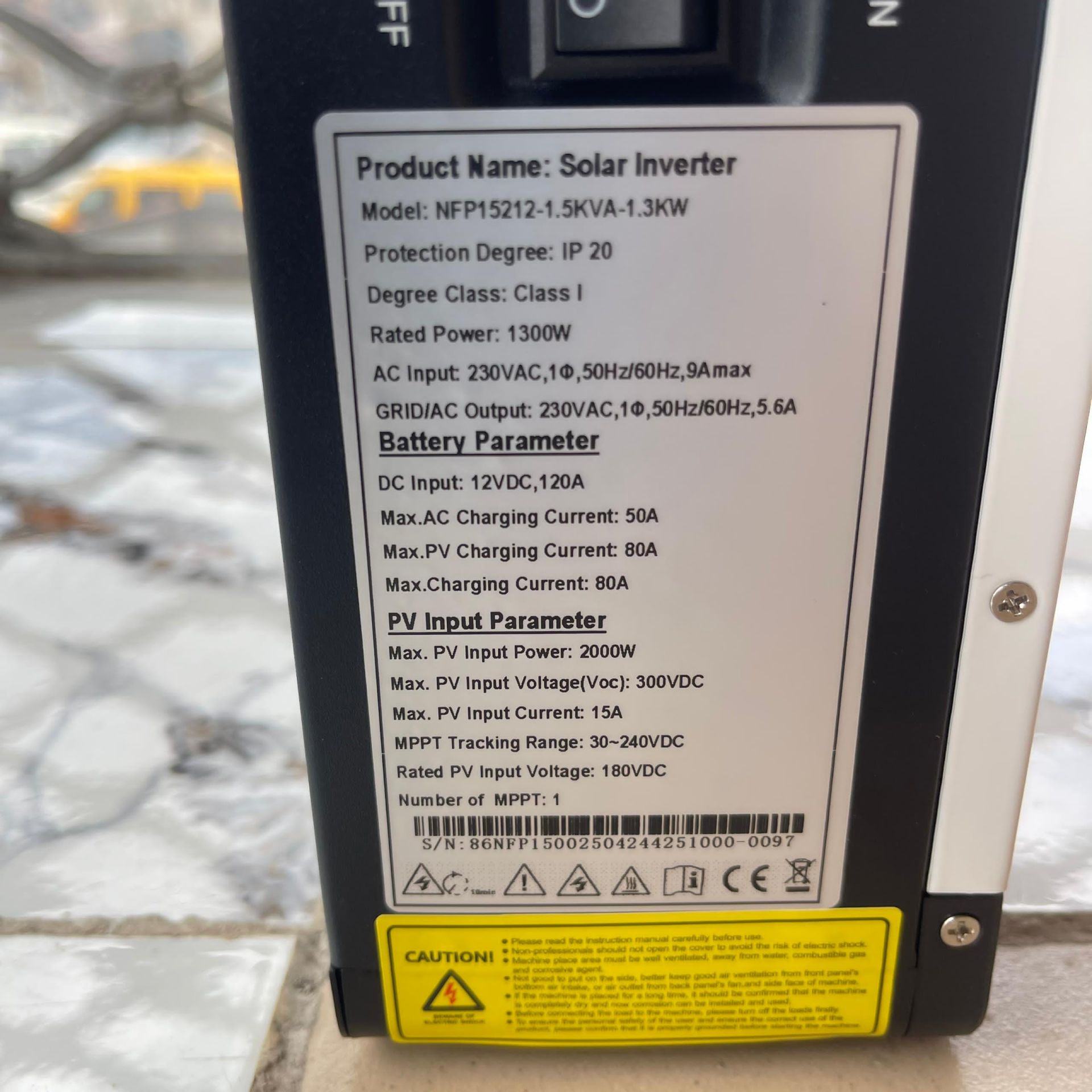

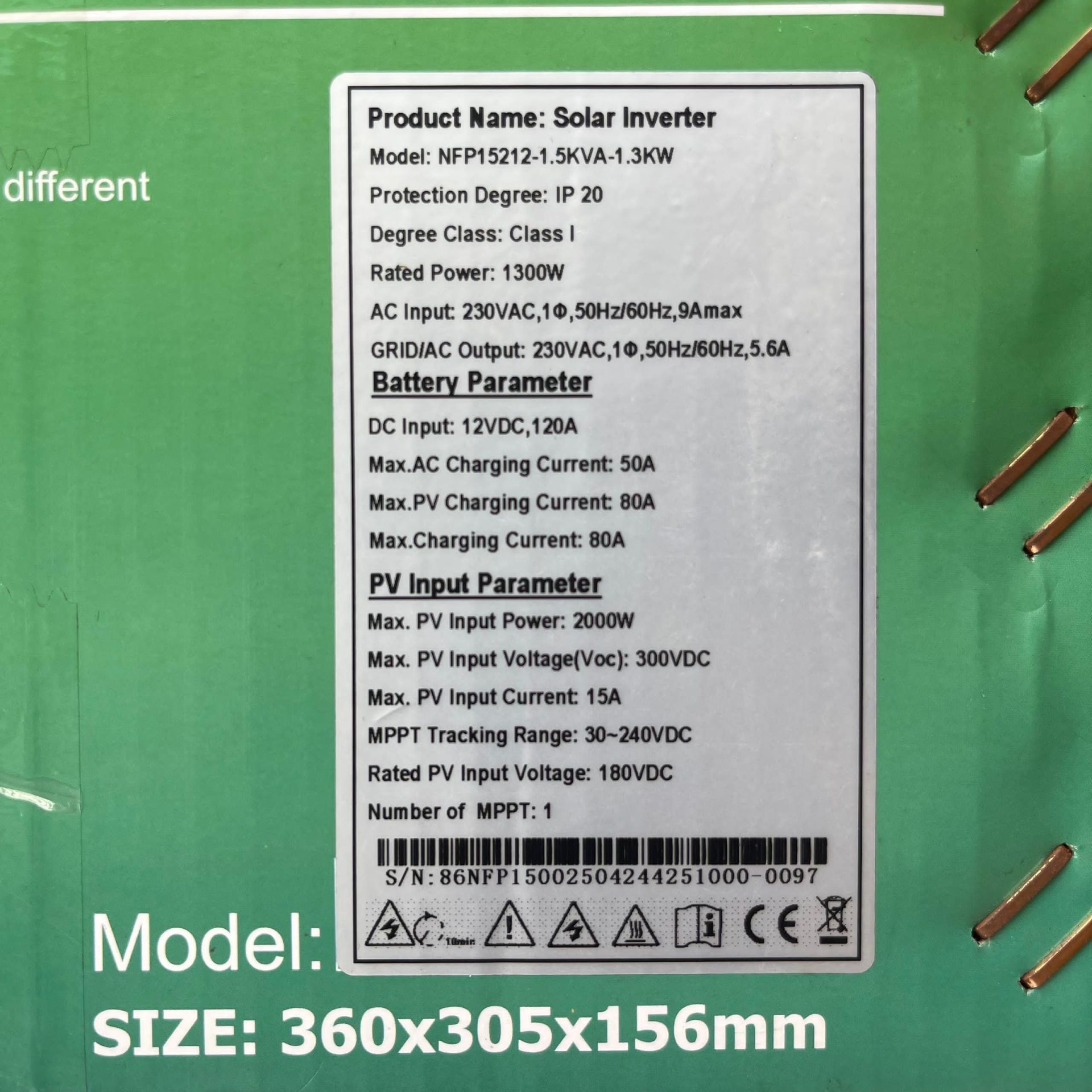

Product Information

• Brand: Kartel
• Product Type: Hybrid Solar Inverter
• Model: NFP15212-1.5KVA-1.3KW
• Protection Degree: IP20
• Degree Class: Class I

Power Specifications

• Rated Power: 1300W
• Battery Input: 12VDC, 120A
• Maximum AC Charging Current: 50A
• Maximum PV Charging Current: 80A
• Maximum Charging Current: 80A

AC Input

• AC Input Voltage: 230VAC
• Phase: 1Φ
• Frequency: 50Hz/60Hz
• Maximum Input Current: 9A

AC Output

• Grid/AC Output Voltage: 230VAC
• Phase: 1Φ
• Frequency: 50Hz/60Hz
• Output Current: 5.6A

PV Input Parameters

• Maximum PV Input Power: 2000W
• Maximum PV Input Voltage (Voc): 300VDC
• Maximum PV Input Current: 15A
• MPPT Tracking Range: 30VDC–240VDC
• Rated PV Input Voltage: 180VDC
• Number of MPPT Trackers: 1

Physical Information

• Product Size: 360 × 305 × 156 mm

Key Features

• Hybrid solar inverter design
• Model NFP15212-1.5KVA-1.3KW
• Rated power output of 1300W
• 12VDC battery input system
• Maximum PV input power of 2000W
• MPPT tracking range of 30VDC–240VDC
• Maximum PV input voltage of 300VDC
• Single MPPT tracker
• 230VAC input and output operation
• Supports 50Hz and 60Hz frequencies
• IP20 protection degree
• Compact 360 × 305 × 156 mm design

Benefits

• Supports solar energy harvesting through integrated MPPT technology.
• Combines inverter and solar charging functions in a single device.
• Suitable for 12V battery-based energy systems.
• Wide MPPT voltage tracking range for flexible solar input conditions.
• Compact form factor for convenient installation planning.
• Provides standard 230VAC output for compatible electrical loads.
