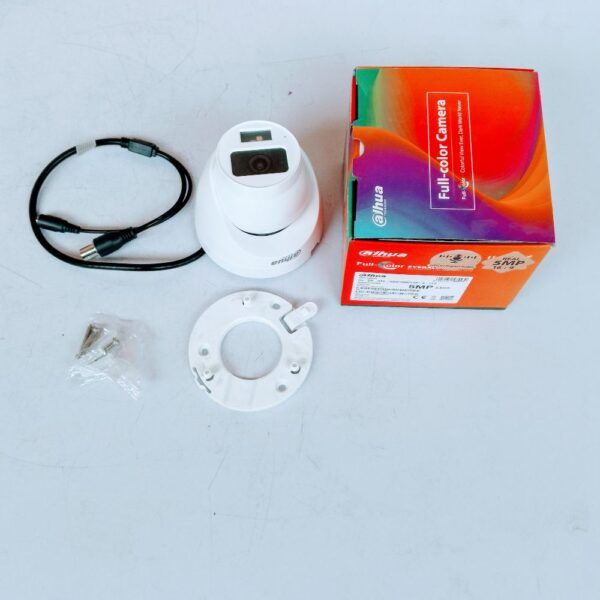

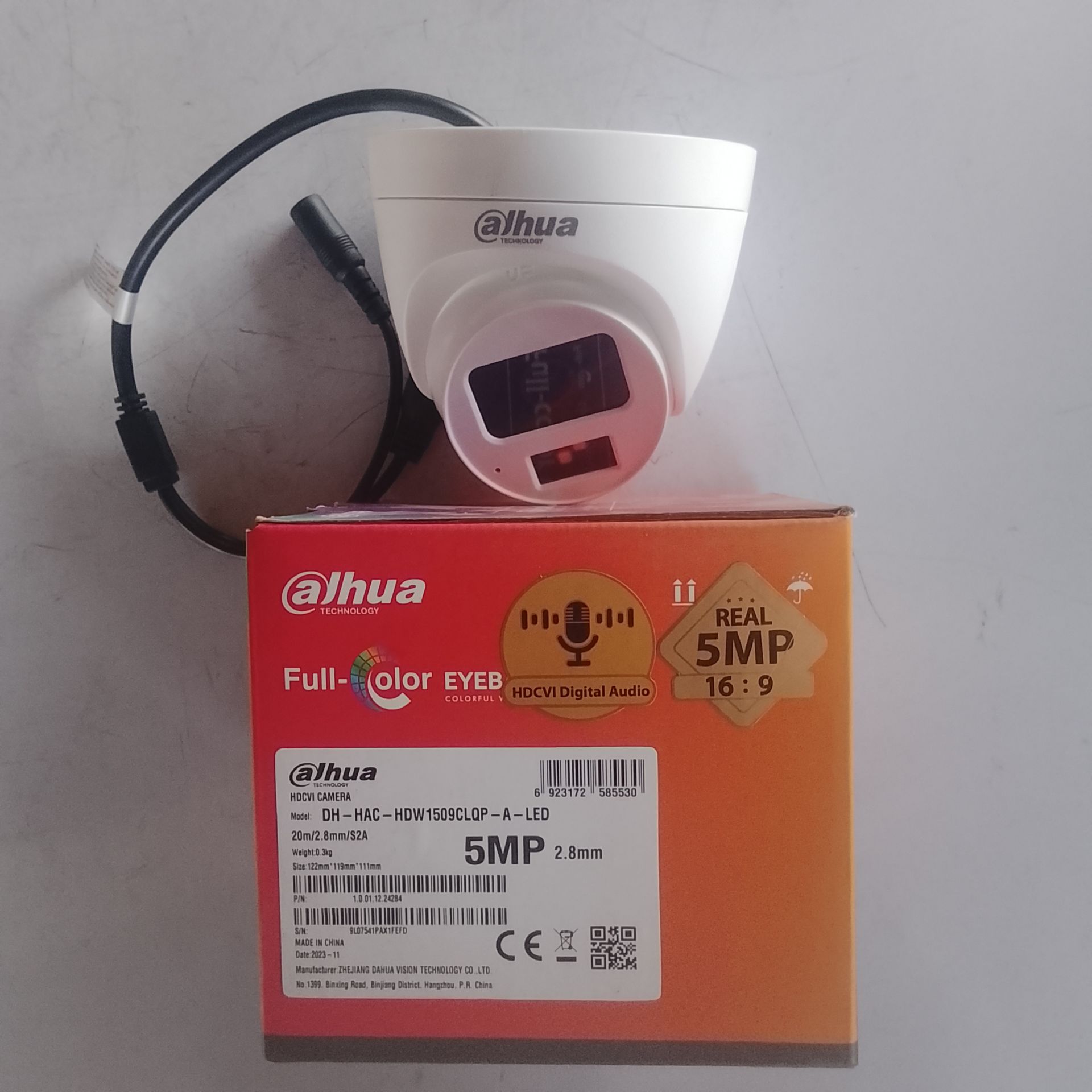

Dahua 5mp Indoor Full Colour Audio Camera (DH-HAC-HDW1509CLQP-A-LED)

The Dahua 5MP Indoor Full Colour Audio Camera (DH-HAC-HDW1509CLQP-A-LED) is a high-definition surveillance camera designed to deliver full-colour video recording with integrated audio capture. Featuring a 5MP CMOS sensor, built-in microphone, and Dahua's full-colour imaging technology, the camera provides clear visual monitoring with colour details available around the clock.

Designed as a Quick-to-install Eyeball Camera, it combines practical installation design with professional surveillance performance. The camera supports multiple video standards, making it suitable for integration into various HDCVI surveillance systems.

24/7 Full-Colour Imaging

Unlike traditional surveillance cameras that may rely on monochrome night images, this camera is designed to provide 24/7 colour imaging, helping preserve important visual details in monitored environments.

Built-In Audio Recording

The camera includes a built-in microphone (-A), allowing audio capture alongside video recording for enhanced surveillance monitoring.

High-Resolution 5MP Imaging

With a maximum resolution of 2880 × 1620, the camera delivers detailed video output suitable for environments where image clarity is important.

Multi-Format Video Compatibility

The camera supports CVI, CVBS, AHD, and TVI video formats, offering flexibility when integrating into compatible surveillance systems.

Wide Coverage and Illumination

Equipped with a 3.6 mm fixed lens and up to 20 metres illumination distance, the camera provides wide scene coverage and enhanced visibility in low-light conditions.

Key Features

• Model: DH-HAC-HDW1509CLQP-A-LED
• 5MP Full-colour HDCVI Quick-to-install Eyeball Camera
• 5MP CMOS image sensor
• Maximum resolution: 2880 × 1620
• 24/7 colour imaging
• Built-in microphone
• 20 m illumination distance
• 3.6 mm fixed lens
• CVI/CVBS/AHD/TVI switchable
• Progressive scanning system
• Smart Light support
• DWDR support
• 2D Noise Reduction
• Privacy masking support
• IP67 protection grade
• 12 V DC power supply

Benefits

• Maintains colour video monitoring throughout the day and night
• Captures both video and audio from a single surveillance device
• Provides detailed image quality through 5MP resolution
• Supports multiple video formats for flexible deployment
• Suitable for residential and commercial surveillance applications
• Wide viewing angle helps cover monitoring areas effectively
• Built-in illumination improves visibility in low-light environments
• Compact eyeball design supports discreet and professional installations

Technical Specifications

Camera

Image Sensor

• 5MP CMOS

Maximum Resolution

• 2880 (H) × 1620 (V)

Pixel

• 5MP

Scanning System

• Progressive

Electronic Shutter Speed

• PAL: 1/25 s–1/100,000 s
• NTSC: 1/30 s–1/100,000 s

S/N Ratio

• Greater than 65 dB

Minimum Illumination

• 0.005 Lux/F1.6
• 0 Lux (warm light on)

Illumination Distance

• 20 m (65.61 ft)

Illuminator Control

• Auto
• Manual

Illuminator Quantity

• 2

Pan/Tilt/Rotation

• Pan: 0°–360°
• Tilt: 0°–78°
• Rotation: 0°–360°

Lens

Lens Type

• Fixed focal

Mount Type

• M12

Focal Length

• 3.6 mm

Maximum Aperture

• F1.6

Field of View

• Horizontal: 90°
• Vertical: 48°
• Diagonal: 104°

Iris Type

• Fixed

Close Focus Distance

• 1.5 m (4.92 ft)

DORI Distance (3.6 mm Lens)

• Detect: 77.8 m (255.25 ft)
• Observe: 31.1 m (102.03 ft)
• Recognize: 15.6 m (51.18 ft)
• Identify: 7.8 m (25.59 ft)

Video

Frame Rate

CVI

• PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
• NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps

AHD

• PAL: 4M@25 fps
• NTSC: 4M@30 fps

TVI

• PAL: 4M@25 fps
• NTSC: 4M@30 fps

CVBS

• PAL: 960H
• NTSC: 960H

Supported Resolutions

• 5M (2880 × 1620)
• 4M (2560 × 1440)
• 1080p (1920 × 1080)
• 960H (960 × 576 / 960 × 480)

Image Functions

• BLC
• HLC
• DWDR
• Auto White Balance
• Area White Balance
• Auto Gain Control
• Manual Gain Control
• 2D NR
• Smart Light
• Mirror On/Off
• Privacy Masking (8 rectangular areas)

Audio

Audio Input

• One channel built-in microphone (-A)

Port

Video Output

• CVI/TVI/AHD/CVBS selectable through one BNC port

Power

Power Supply

• 12 V ±30% DC

Maximum Power Consumption

• 3.5 W (12 V DC, warm light on)

Environment

Operating Temperature

• –40 °C to +60 °C
• Less than 95% RH (non-condensing)

Storage Temperature

• –40 °C to +60 °C
• Less than 95% RH (non-condensing)

Protection Grade

• IP67

Structure

Casing Material

• Plastic throughout the whole casing

Dimensions

• φ97.1 mm × 93.8 mm

Net Weight

• 0.19 kg

Gross Weight

• 0.28 kg

Certifications

• CE (EN55032, EN55024, EN50130-4, EN62368-1)
• FCC (CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014)
• UL (UL60950-1 + CAN/CSA C22.2 No.60950-1)
