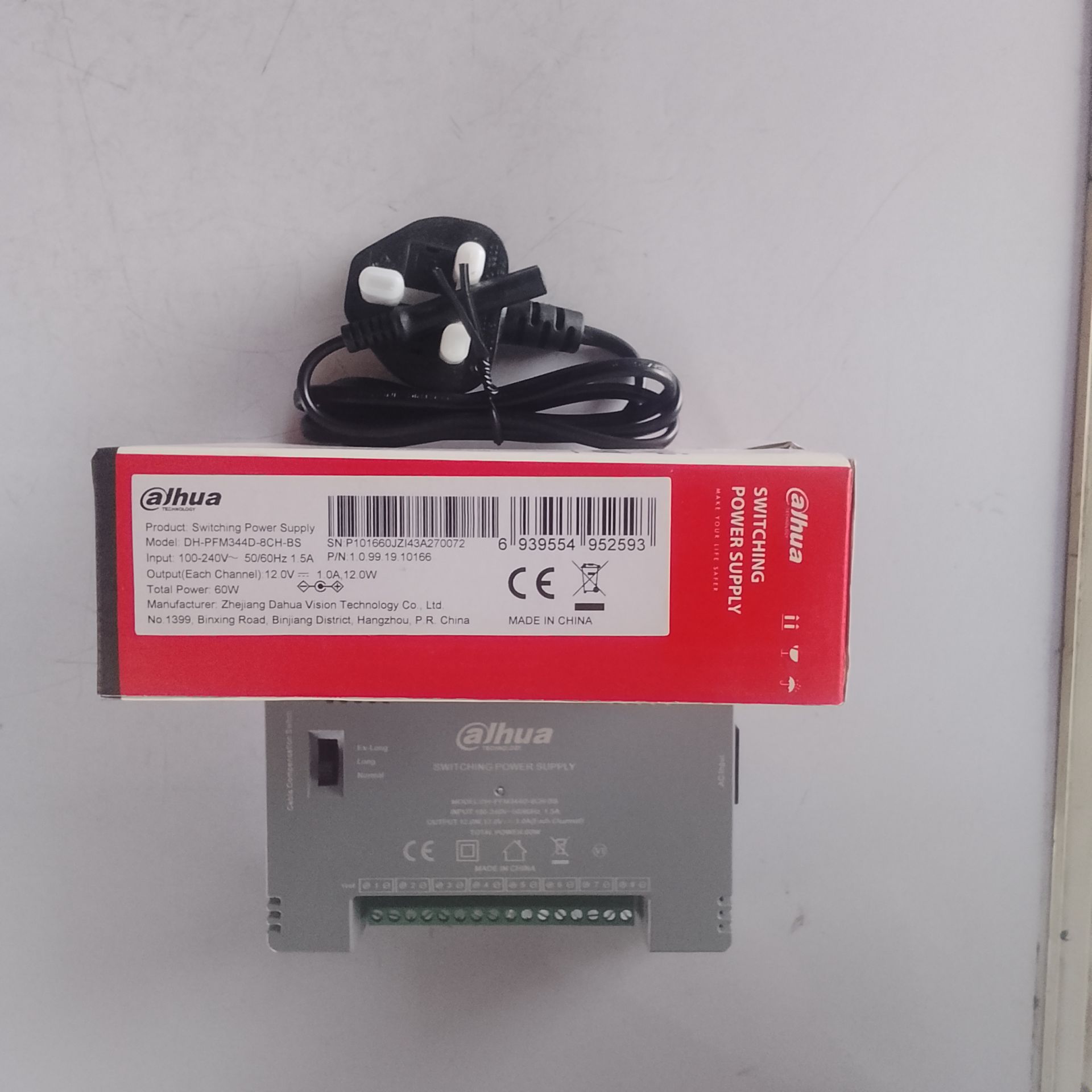

Dahua 8Way Power Supply Box With Power Cord (DH-PFM344D-8CH-BS)

The Dahua 8Way Power Supply Box With Power Cord (DH-PFM344D-8CH-BS) is a multi-channel switching power supply engineered to provide centralized power distribution for CCTV cameras and other compatible low-voltage devices. Designed with 8 output channels, it enables multiple devices to be powered from a single location while maintaining organized wiring and simplified power management.

Built by Dahua Technology, the unit combines compact construction with dedicated output terminals, making it suitable for surveillance installations where structured power distribution is required. The included power cord allows direct connection to AC mains power, while the wall-mountable design supports professional deployment.

Centralized Power Distribution

The 8-channel design allows installers and users to manage power for multiple devices from one dedicated power supply unit, reducing the need for multiple separate adapters and power outlets.

Stable Multi-Channel Output

Each output channel is rated at 12V DC, 1.0A, providing dedicated power distribution across connected channels. The unit delivers a total power output of 60W.

Flexible Input Voltage Range

Supporting 100–240V AC input, the power supply can operate across a wide range of standard mains power environments.

Compact Wall-Mounted Design

The enclosure is designed for wall mounting, helping keep power distribution organized within security cabinets, control rooms, equipment installations, and surveillance environments.

Key Features

• Model: DH-PFM344D-8CH-BS
• 8-way switching power supply
• Includes power cord
• 8 output channels
• 12V DC output
• 1.0A output per channel
• 60W total power output
• Input voltage: 100–240V AC
• Wall-mounted design
• Cable compensation switch with Ex-Long, Long, and Normal settings
• Centralized terminal-based power distribution

Benefits

• Powers multiple surveillance devices from a single unit
• Reduces cable clutter from individual power adapters
• Helps create a more organized CCTV power distribution system
• Suitable for residential, commercial, and institutional surveillance projects
• Compact design helps conserve installation space
• Dedicated channel outputs simplify device power management
• Supports structured wiring practices
• Provides centralized power control for multiple connected devices

Technical Specifications

General

• Brand: Dahua
• Product Type: Switching Power Supply
• Model Number: DH-PFM344D-8CH-BS

Input

• Input Voltage: 100–240V AC
• Input Frequency: 50/60Hz
• Input Current: 1.5A

Output

• Output Voltage: 12V DC
• Output Current: 1.0A per channel
• Number of Channels: 8
• Total Power Output: 60W

Installation

• Mounting Type: Wall Mounted

Control

• Cable Compensation Switch:
  • Ex-Long
  • Long
  • Normal

Included Accessories

• Power Cord

Manufacturer

• Manufacturer: Zhejiang Dahua Vision Technology Co., Ltd.
