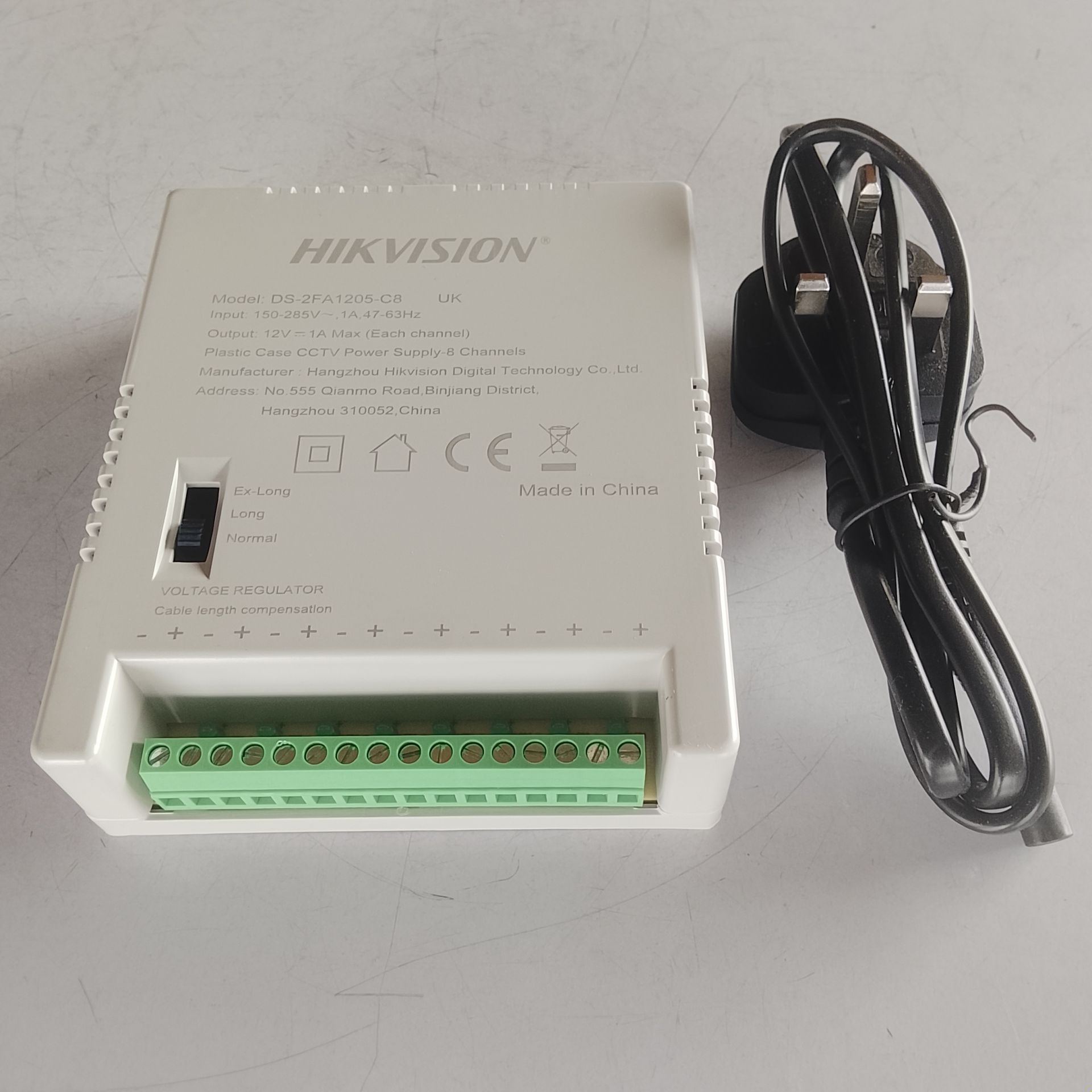

Hikvision 8Way Power Supply Box With Power Cord (DS-2FA1205-C8)

The Hikvision 8Way Power Supply Box With Power Cord (DS-2FA1205-C8) is a multi-channel CCTV power supply unit developed for centralized power distribution within surveillance systems. Designed by Hikvision, the unit enables power delivery across eight channels from a single power source while maintaining an organized wiring structure.

Its compact plastic enclosure houses the power supply circuitry, output terminals, and voltage regulator adjustment settings. The included power cord and clearly identified connection terminals make the unit suitable for CCTV environments where multiple devices require a dedicated power source.

The DS-2FA1205-C8 is specifically identified by Hikvision as a Plastic Case CCTV Power Supply with eight channels and incorporates cable length compensation settings to support different cable run requirements.

Features

Eight-Channel Power Distribution

The unit provides eight output channels, enabling centralized power delivery for multiple CCTV devices from a single power supply box.

Wide Input Voltage Range

The power supply accepts an input voltage range of 150–285V AC, as specified on the product housing.

Cable Length Compensation

The built-in voltage regulator includes selectable cable compensation settings:

• Normal
• Long
• Ex-Long

These settings are clearly labeled on the unit for cable length compensation purposes.

Compact Plastic Housing

The power supply is enclosed within a durable plastic case designed for CCTV power supply applications.

Included Power Cord

A power cord is included with the product, providing a complete power supply package.

Technical Specifications

Product Information

• Brand: Hikvision
• Model: DS-2FA1205-C8
• Product Type: Plastic Case CCTV Power Supply
• Channels: 8 Channels

Electrical Specifications

• Input Voltage: 150–285V AC
• Input Current: 1A
• Input Frequency: 47–63Hz
• Output Voltage: 12V
• Output Current: 1A Maximum (Each Channel)

Physical Details

• Enclosure Type: Plastic Case
• Included Accessory: Power Cord

KEY FEATURES

• Hikvision CCTV power supply unit
• Model DS-2FA1205-C8
• Eight-channel power distribution
• 12V output voltage
• Maximum 1A output per channel
• 150–285V AC input range
• 47–63Hz input frequency
• Plastic case construction
• Cable length compensation functionality
• Normal, Long, and Ex-Long regulator settings
• Integrated output terminal block
• Power cord included

BENEFITS

• Centralizes power distribution for multiple CCTV channels
• Helps create a more organized surveillance power setup
• Reduces the need for multiple individual power supplies
• Supports structured cable management
• Wide input voltage range accommodates varying power conditions
• Multiple output channels simplify CCTV power deployment
• Compact design supports neat equipment organization
• Dedicated CCTV power supply design for surveillance applications
