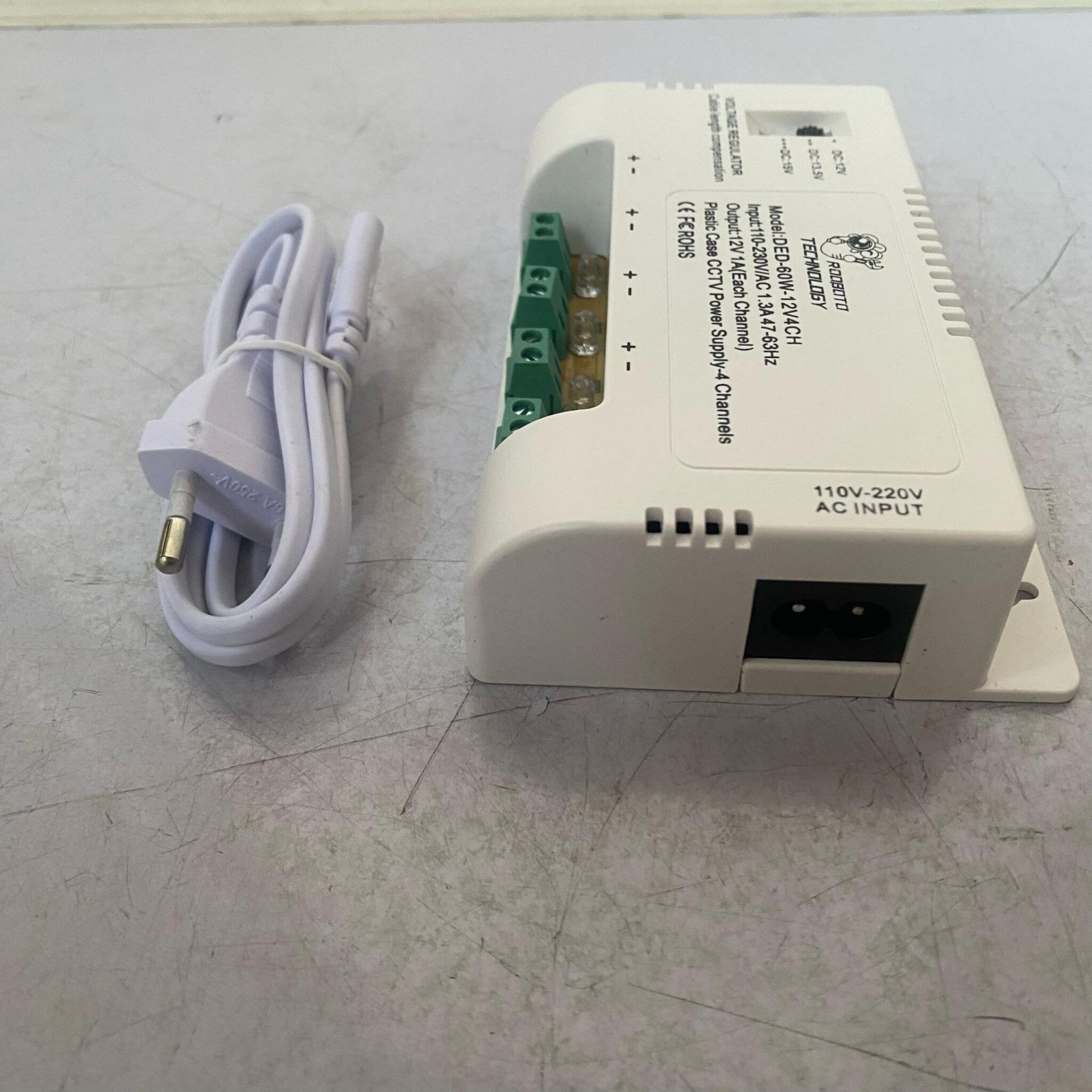

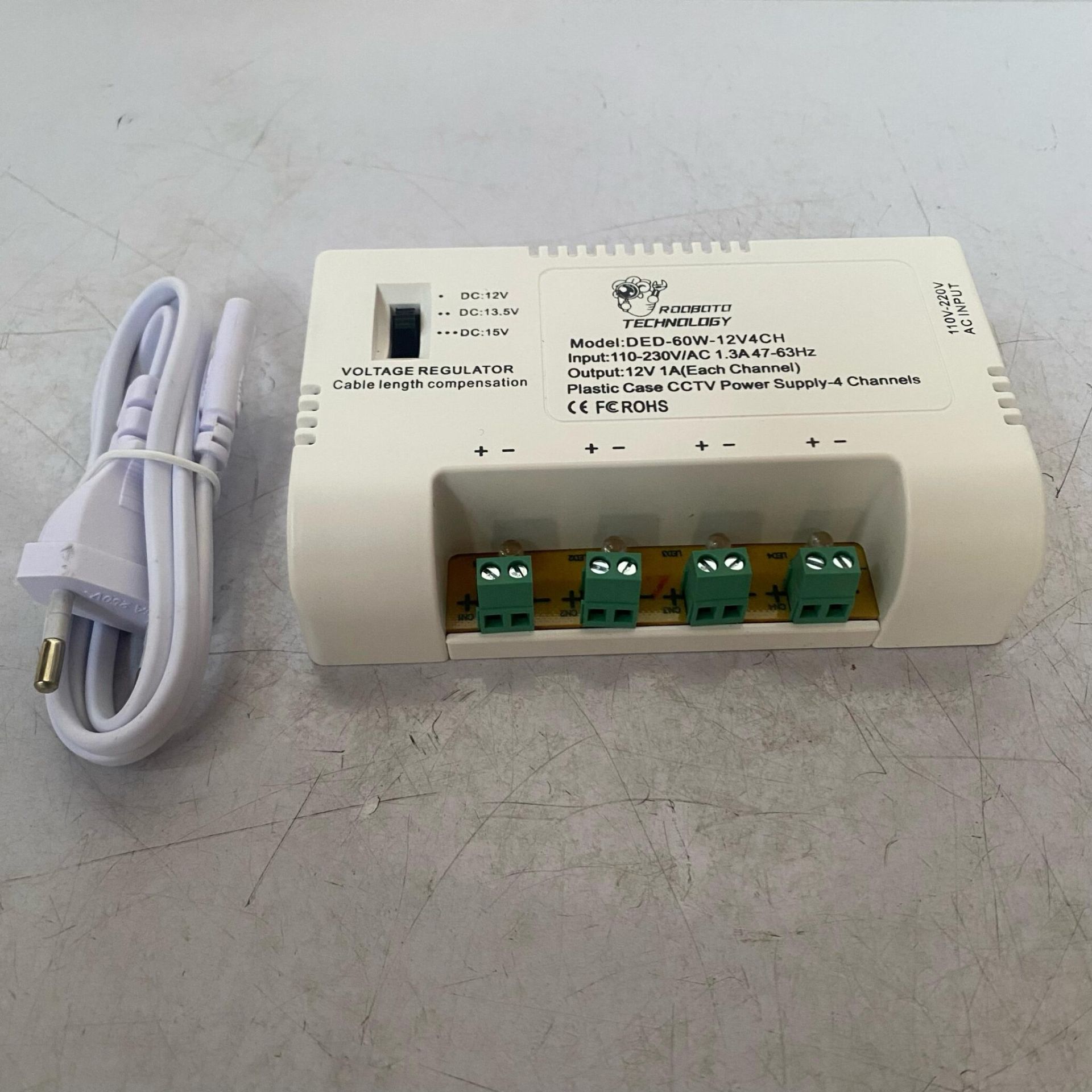

Rooboto 4way Power Supply Box With Power Cord (DED-60W-12V4CH)

The Rooboto 4way Power Supply Box (DED-60W-12V4CH) is a dedicated CCTV power distribution unit designed to provide centralized power delivery for up to four camera channels. Instead of using separate power adapters for each camera, this unit consolidates power management into a single compact enclosure.

Its multi-channel configuration helps simplify CCTV installations while maintaining organized power distribution across connected devices.

Four-Channel Power Distribution

The power supply is designed with four independent output channels, allowing multiple CCTV cameras to be powered from one centralized unit. This arrangement helps reduce cable clutter and simplifies power management for surveillance systems.

Voltage Regulation Function

The unit features a built-in voltage regulator with cable length compensation. Users can select between:

• DC 12V
• DC 13.5V
• DC 15V

This feature provides flexibility when managing power delivery requirements across different cable runs.

Wide AC Input Support

The power supply accepts a wide AC input range of 110–230V AC, enabling operation across different electrical environments while supplying regulated DC output to connected CCTV devices.

Compact CCTV Power Solution

The plastic enclosure houses the power distribution components in a compact format suitable for CCTV installations requiring organized and centralized power management.

Technical Specifications

• Brand: Rooboto Technology
• Product Type: CCTV Power Supply Box
• Model Number: DED-60W-12V4CH
• Channel Capacity: 4 Channels
• Input Voltage: 110–230V AC
• Input Current: 1.3A
• Input Frequency: 47–63Hz
• Output Voltage: 12V DC
• Output Current: 1A per Channel
• Adjustable Voltage Options:
  • DC 12V
  • DC 13.5V
  • DC 15V
• Voltage Regulator: Yes
• Cable Length Compensation: Yes
• Housing Material: Plastic Case
• Included Accessory: Power Cord

Key Features

• Model DED-60W-12V4CH
• 4-channel CCTV power distribution
• 110–230V AC input
• 12V DC output
• 1A output per channel
• Voltage regulator function
• Cable length compensation feature
• Selectable 12V, 13.5V, and 15V output settings
• Plastic enclosure design
• Includes power cord
• Centralized CCTV power management

Benefits

• Powers multiple CCTV cameras from a single unit
• Reduces the need for multiple individual adapters
• Helps maintain a cleaner and more organized installation
• Simplifies CCTV power distribution management
• Provides adjustable voltage selection options
• Suitable for various surveillance power requirements
• Compact design helps save installation space
• Centralized power setup improves cable organization
• Practical solution for residential and commercial CCTV systems
